Fully Automatic Silo Production Line | High-Speed, Turnkey Roll Forming System
Advanced automatic silo production line for manufacturing high-strength silo wall panels, roof sheets, and base rings. A complete, CNC-controlled solution with ≤0.2% defect rate. Request a quote today.

—

Automatic Silo Production Line: Engineered for Unmatched Efficiency & Precision

At BEN-THOMAS, we revolutionize the fabrication of agricultural and industrial storage solutions. Our Automatic Silo Production Line is a comprehensive, CNC-controlled manufacturing system designed to produce the complete structural envelope of a silo with minimal human intervention. From durable wall panels to conical roof sections and robust base rings, our integrated line delivers consistent, high-precision components that enable faster on-site assembly and superior structural integrity for bulk storage applications.

—

Why Choose Our Fully Automatic Silo Line?

· End-to-End Automation: From coil feeding to final bundling, our system integrates decoiling, precision roll forming, servo-punching, cutting, and automated stacking/palletizing.
· One System, All Components: Produce all critical silo parts—curved wall panels, roof sheets, and stiffening base rings—on a single, synchronized production line.
· Uncompromising Precision: Achieve critical tolerances for panel curvature, hole spacing (±0.01-0.08mm), and length (±1mm), ensuring seamless on-site fit and structural reliability.
· Industry-Leading Uptime: Built with heavy-duty components for G550 high-strength steel and a design life exceeding 20 years, maximizing your return on investment.
· Smart Manufacturing: Centralized PLC/HMI control allows for easy profile changes, real-time monitoring, and data collection for production optimization.

—

Core Components & Capabilities

Our modular grain bin profile line can be configured to meet your specific production goals:

1. High-Strength Silo Wall Panel Line:
· Forms precision-curved panels from galvanized or aluminized steel coils.
· Key Spec: Handles material thickness: 1-4mm or 1-6mm.
2. Precision Punching & Cutting System:
· Servo-driven multi-head punching units and flying cut-off systems create assembly holes and exact panel lengths with flawless accuracy.
3. Conical Roof & Hopper Section Former:
· Dedicated station for forming tapered roof sheets and hopper components with consistent geometry.
4. Base Ring & Stiffener Roll Forming Unit:
· Produces the critical base channels and structural stiffeners that provide silo stability.
5. Automated Material Handling (Optional):
· Integrated systems for automatic panel stacking, palletizing, and strapping, creating a true “lights-out” manufacturing cell.
—

Applications & End-Use

This grain bin line is ideal for manufacturers serving:

· Agriculture: Grain, feed, and fertilizer storage silos.
· Industry: Cement, fly ash, pellet, and biomass storage tanks.
· Bulk Material Handling: Port logistics and processing plant storage.

—

Your Partner in Advanced Machinery for Silo Manufacturing

We provide more than just machinery—we deliver a complete production ecosystem. Our partnership includes detailed engineering, on-site installation & commissioning, comprehensive training, and reliable global spare parts support.

Ready to transform your silo manufacturing capacity?

Frequently Asked Questions

Successful FAT of a Silo Wall Panel Line for Major Indian Manufacturer

Project Case Study: Successful FAT of a Silo Sidewall Production Line Major Indian Manufacturer

Client: A leading silo manufacturing company based in Pune, India
Supplier:BEN THOMAS Machinery Co., Ltd.
Project:Factory Acceptance Test (FAT) for a Fully-Automated Corrugated Silo Wall Panel Production Line
FAT Date:March 2024

1. Client Challenge & Project Objective
Our client,a prominent player in India’s agricultural and industrial storage sector, faced challenges in meeting the surging demand for large-diameter silos. Their existing fabrication process for curved wall panels was labor-intensive, slow, and resulted in inconsistent quality, affecting onsite assembly speed and final silo integrity. They commissioned BEN THOMAS to deliver a complete, automated solution that would guarantee high output, exceptional dimensional accuracy, and robust construction for long-term reliability.

2. The BEN THOMAS Solution
BEN THOMAS engineered a heavy-duty, PLC-controlled corrugation shaping line specifically for high-volume production of corrugated silo wall panels.

Key Line Features:

· High-Precision Corrugation Shaping Forming System: Equipped with hardened tooling to form precise, repeatable corrugation profiles from galvanized steel coils (1mm to 4mm thickness).
· Integrated Punching System: For simultaneous, accurate piercing of bolt holes, lugs, and ladder attachment points in a single pass.

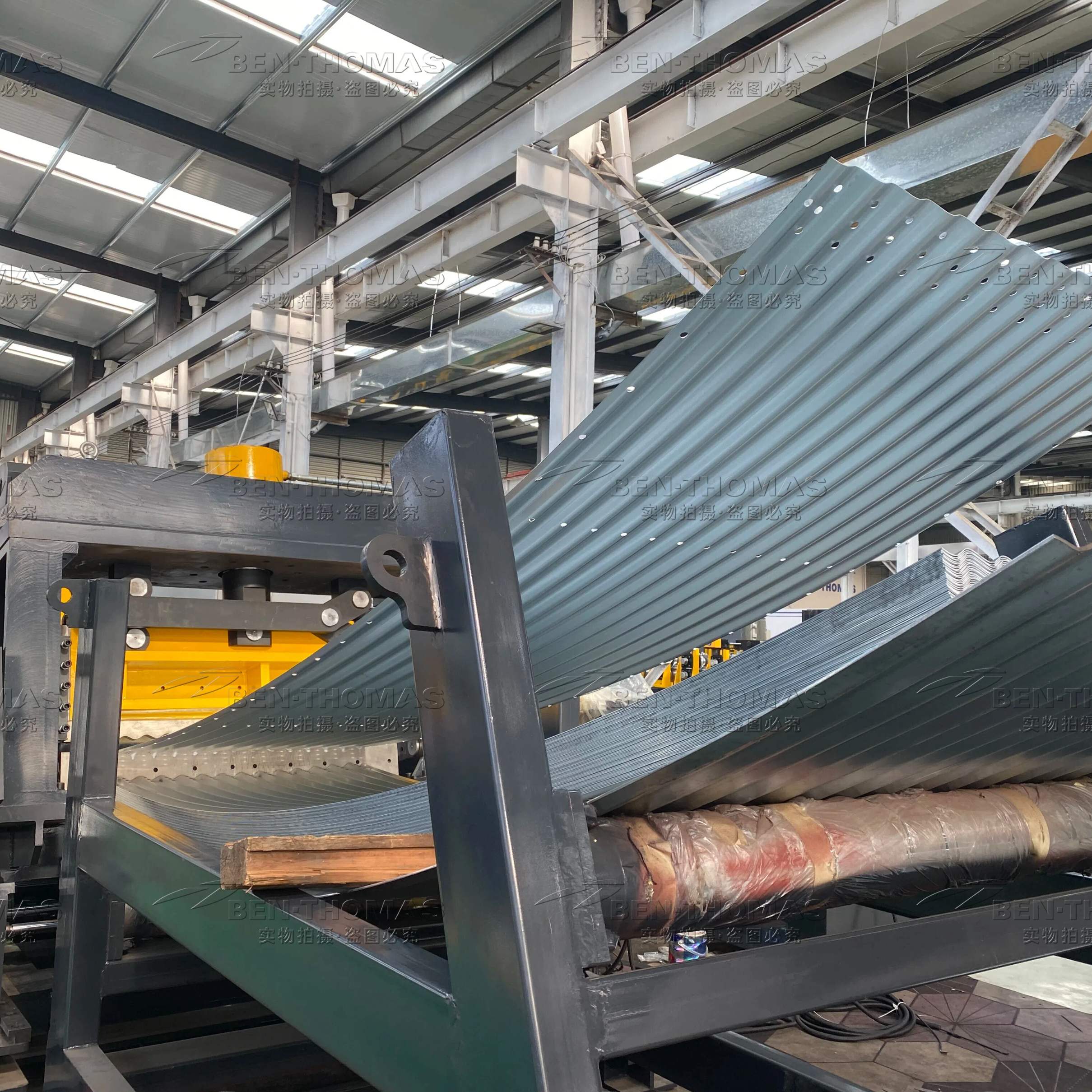

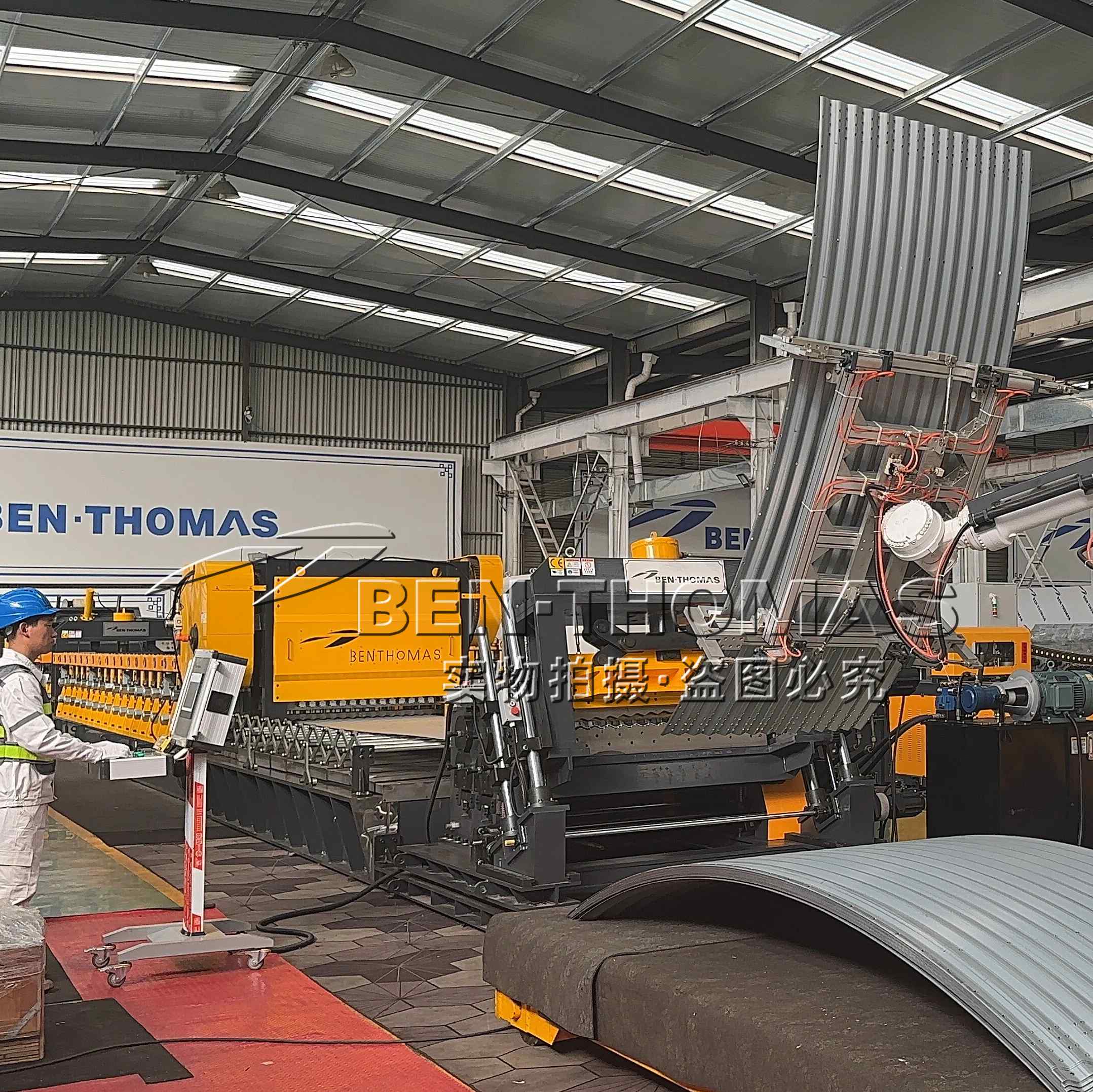

· PLC-Driven Variable-Radius Curving Unit: A standout feature allowing automatic, seamless curvature of panels to various diameters (from 4m to 30m+) without manual adjustment or template changes.
· Automatic Length Measurement & Cutting: Ensured each panel was cut to exact length with ±1mm tolerance.
· Complete Auxiliary Package: Included heavy-duty decoiler, precision leveller, run-out conveyor, and automatic stacking system for finished panels.

3. The Factory Acceptance Test: A Rigorous Validation
A 6-member technical delegation from the client visited the BENTHOMAS factory for a comprehensive 4-day FAT.

· Phase 1: Technical Documentation & Static Inspection. The client’s engineers meticulously reviewed all mechanical drawings, electrical schematics, and component certifications. They inspected the line’s build quality, weld integrity, and major branded components (Siemens PLC, Schneider electrics, etc.).
· Phase 2: Dynamic Dry & Wet Run. The core of the FAT involved multiple production runs using client-provided material.
1. Dry Run: All safety functions, emergency stops, and automatic sequences were tested without material.
2. Wet Run with Target Materials: The line processed several coils at incremental speeds (up to 25 meters per minute). The client team performed real-time quality checks on randomly selected panels, verifying:
· Profile geometry and consistency.
· Hole pattern positioning accuracy.
· Panel length and curvature radius against their specific silo design files.
· Surface finish quality (no scratches or deformation).
· Phase 3: Training & Final Sign-off. BEN THOMAS engineers provided hands-on operational and maintenance training. After addressing all queries and a final review meeting, the client’s Project Manager officially signed the FAT Certificate, confirming the line fully met all contractual performance and quality specifications.

4. Results & Client Endorsement

· Proven Performance: The line exceeded the guaranteed output rate by 12%, achieving a stable production speed of 28 m/min for standard panels.
· Unmatched Accuracy: All dimensional checks confirmed tolerance levels superior to industry standards, ensuring leak-proof, fast onsite assembly.
· Seamless Integration: The line’s PLC interface was praised for its user-friendliness, allowing quick changeovers between different panel specifications.

Client Feedback:
“The BEN THOMAS team demonstrated profound expertise and a cooperative spirit throughout the FAT. The line’s performance, particularly the accuracy of the automatic curving unit, has convinced us of its capability to revolutionize our production efficiency. This investment is a strategic move to enhance our market leadership, and we are confident in the long-term partnership with BEN THOMAS.”
— Director of Operations, Client Company

5. Conclusion
This successful FAT for a major Indian manufacturer underscores BEN THOMAS’s capability to deliver world-class, tailor-made industrial solutions. We combine robust engineering with transparent validation processes, ensuring our clients receive a production asset that is verified, reliable, and ready to deliver a rapid return on investment.

—

About BEN THOMAS
BEN THOMAS is a leading designer and manufacturer of high-performance roll forming systems and complete production lines for the global storage and construction industries. With decades of engineering excellence, we provide turnkey solutions that empower manufacturers to achieve superior quality, efficiency, and growth.

Upgrade Your Manufacturing Capability. Contact BEN THOMAS today to discuss your project requirements and schedule a visit to our demonstration facility.
