Professionally Crafted Silo Wall Panel Production Line for Superior Performance

Our state-of-the-art silo wall panel production line represents the pinnacle of engineering efficiency and reliability in bulk storage solution manufacturing. Designed for high-volume output and consistent quality, this fully automated line specializes in producing the essential corrugated steel sheets that form the robust walls of industrial silos.

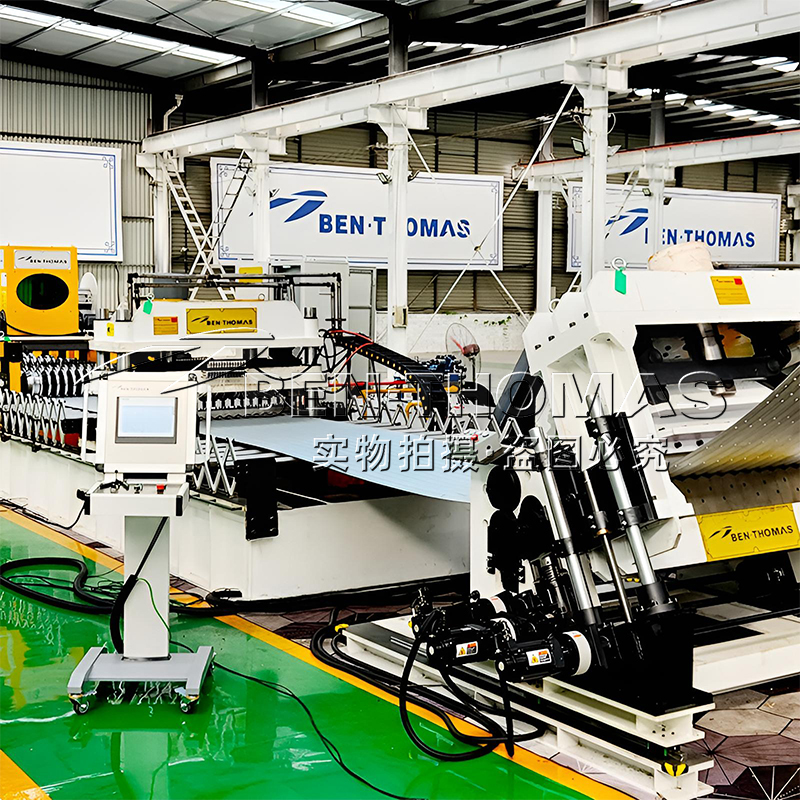

The integrated process begins with high-strength steel coils, which are precisely leveled and fed into a computer-controlled roll forming system. Here, the metal is continuously shaped under immense pressure into precise, uniform corrugations—a critical feature that adds significant structural rigidity to the final silo. The line seamlessly incorporates high-speed piercing for bolt holes with laser-cut accuracy, ensuring perfect alignment during on-site assembly. A key advantage is its customizable forming capabilities, allowing for the production of various panel profiles, widths, and curvature radii to meet specific silo diameter requirements.

Following forming, panels can be directed through a fully automated powder coating or painting system, applying a durable, corrosion-resistant finish for extended lifespan in harsh environments. The production is managed by a central PLC system, guaranteeing repeatable precision, minimal material waste, and optimized workflow from raw coil to finished, neatly stacked panels ready for shipment.

Ideal for manufacturers of agricultural, cement, mining, and grain storage silos, this grain bin sidewall production line boosts your capacity to deliver durable, leak-resistant, and structurally sound silo systems. It embodies a perfect synergy of speed, precision, and adaptability, making it a cornerstone investment for businesses aiming to lead in the competitive bulk storage industry.

About Us: We are a leading provider of advanced metal grain silos forming machinery, offering turn-key production solutions and expert technical support to help our clients achieve manufacturing excellence and grow their global market share.

Frequently Asked Questions

Successful FAT of a Silo Wall Panel Line for Major Indian Manufacturer

Project Case Study: Successful FAT of a Silo Sidewall Production Line Major Indian Manufacturer

Client: A leading silo manufacturing company based in Pune, India
Supplier:BEN THOMAS Machinery Co., Ltd.
Project:Factory Acceptance Test (FAT) for a Fully-Automated Corrugated Silo Wall Panel Production Line
FAT Date:March 2024

1. Client Challenge & Project Objective
Our client,a prominent player in India’s agricultural and industrial storage sector, faced challenges in meeting the surging demand for large-diameter silos. Their existing fabrication process for curved wall panels was labor-intensive, slow, and resulted in inconsistent quality, affecting onsite assembly speed and final silo integrity. They commissioned BEN THOMAS to deliver a complete, automated solution that would guarantee high output, exceptional dimensional accuracy, and robust construction for long-term reliability.

2. The BEN THOMAS Solution

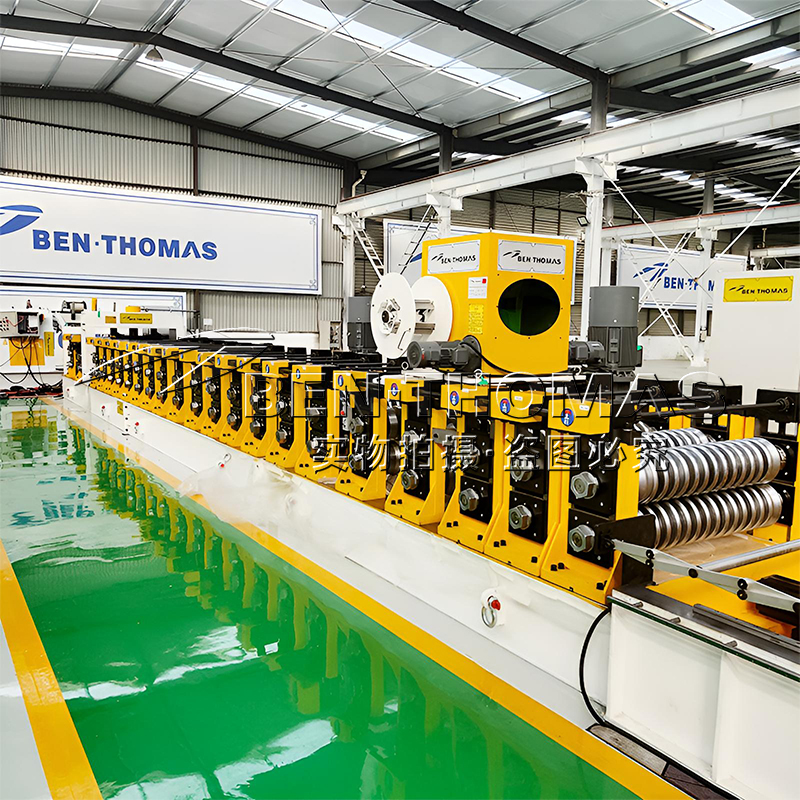

BEN THOMAS engineered a heavy-duty, PLC-controlled corrugation shaping line specifically for high-volume production of corrugated silo wall panels.

Key Line Features:

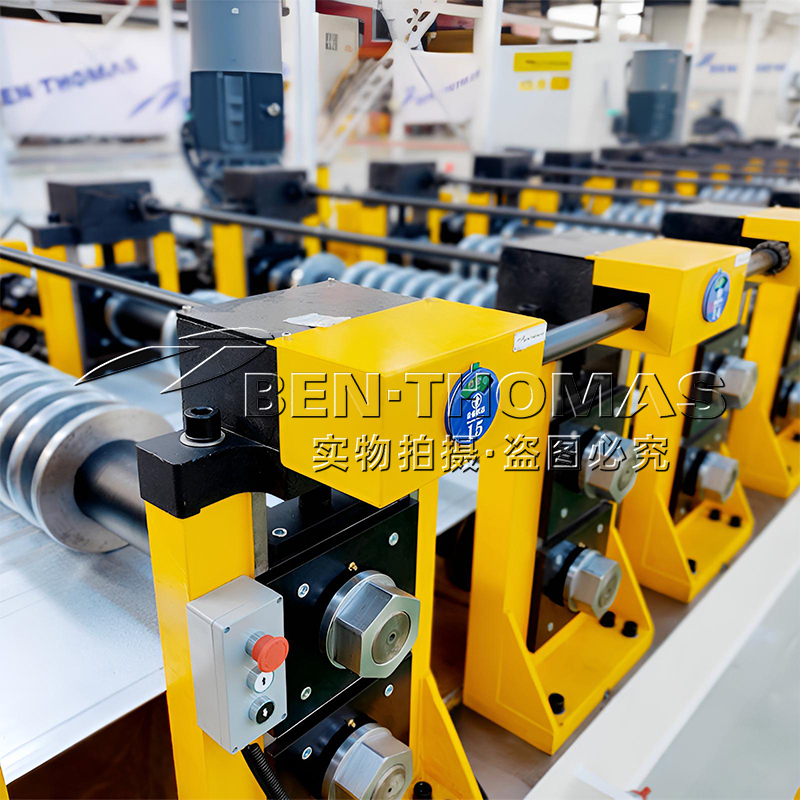

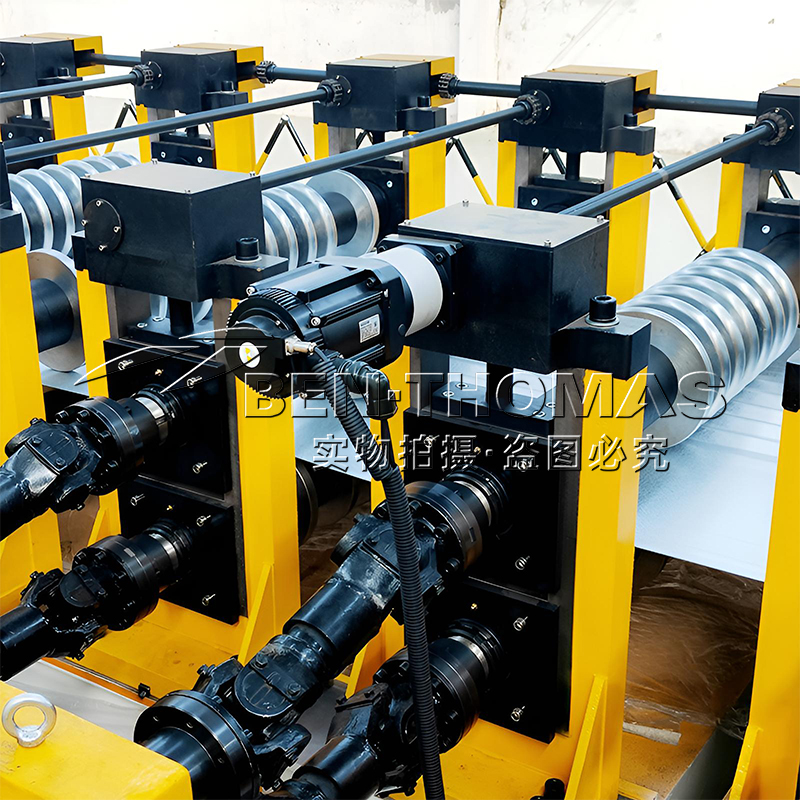

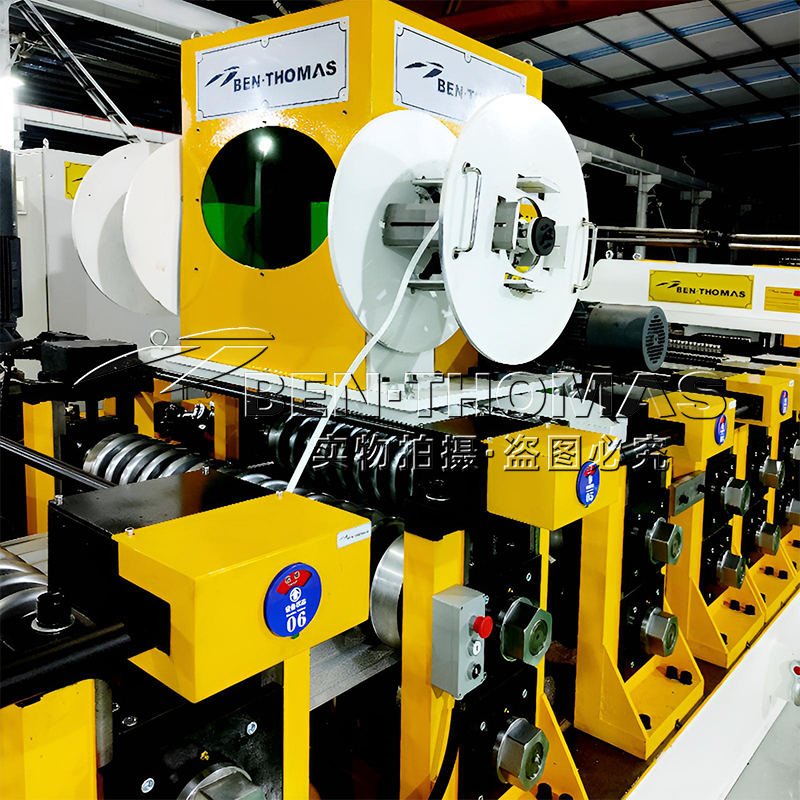

· High-Precision Corrugation Shaping Forming System: Equipped with hardened tooling to form precise, repeatable corrugation profiles from galvanized steel coils (1mm to 4mm thickness).

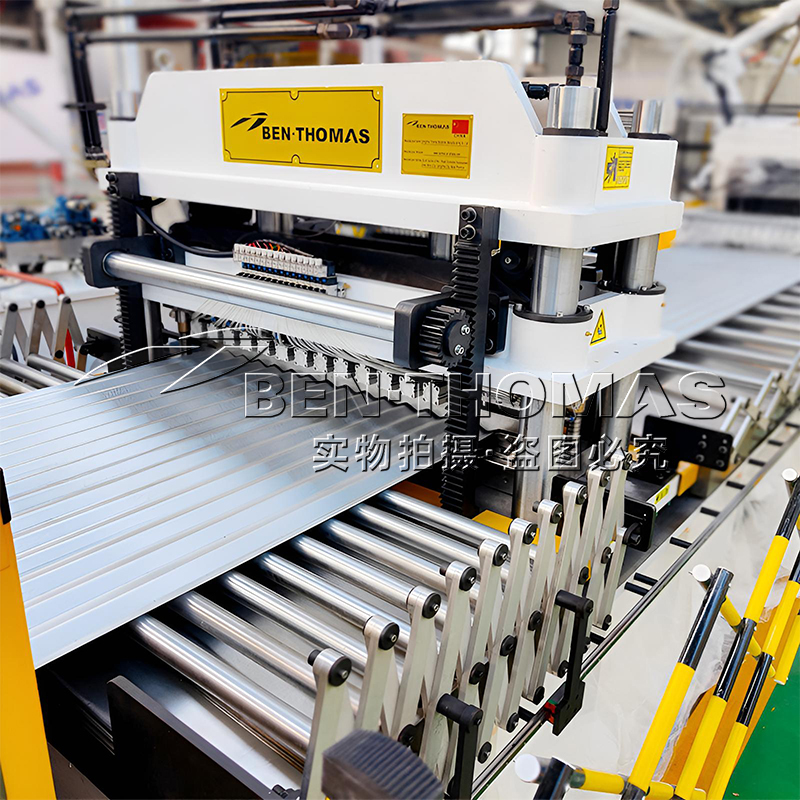

· Integrated Punching System: For simultaneous, accurate piercing of bolt holes, lugs, and ladder attachment points in a single pass.

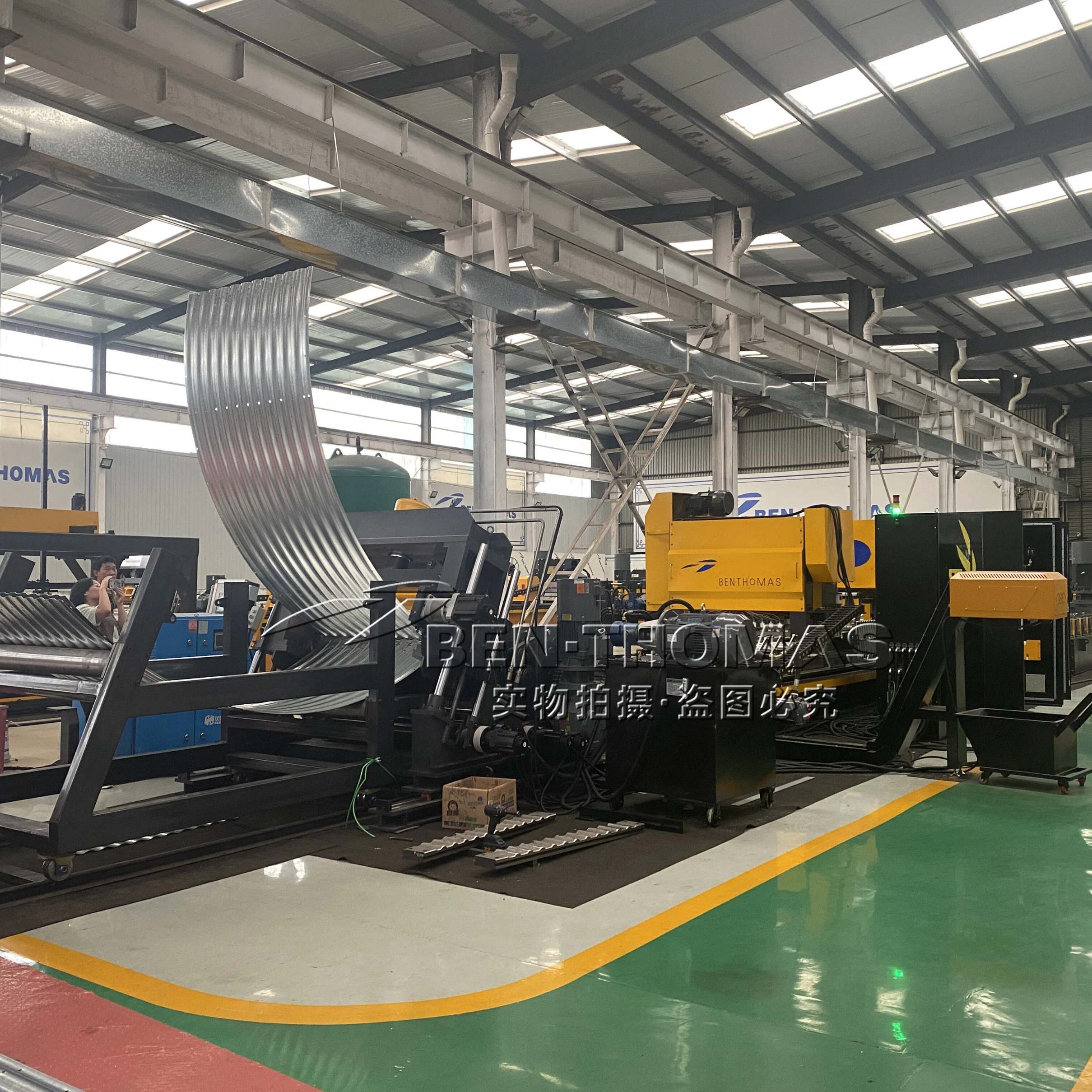

· PLC-Driven Variable-Radius Curving Unit: A standout feature allowing automatic, seamless curvature of panels to various diameters (from 4m to 30m+) without manual adjustment or template changes.
· Automatic Length Measurement & Cutting: Ensured each panel was cut to exact length with ±1mm tolerance.

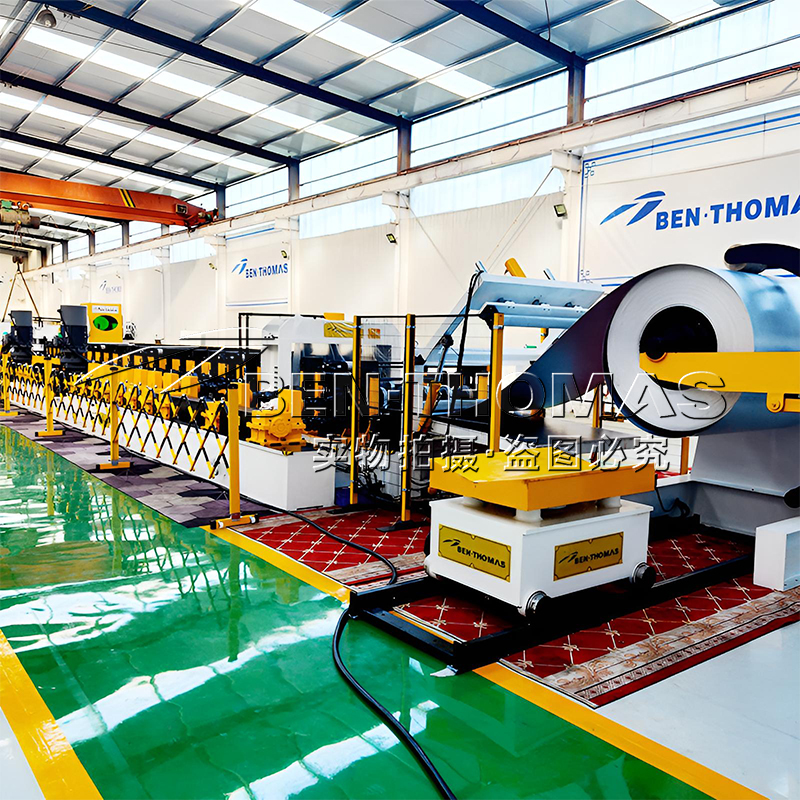

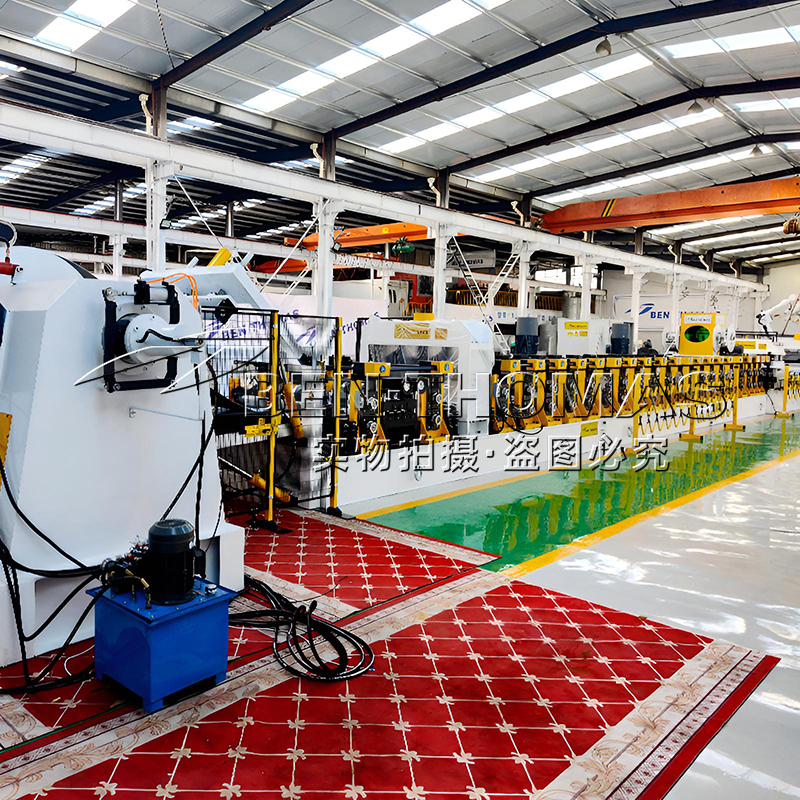

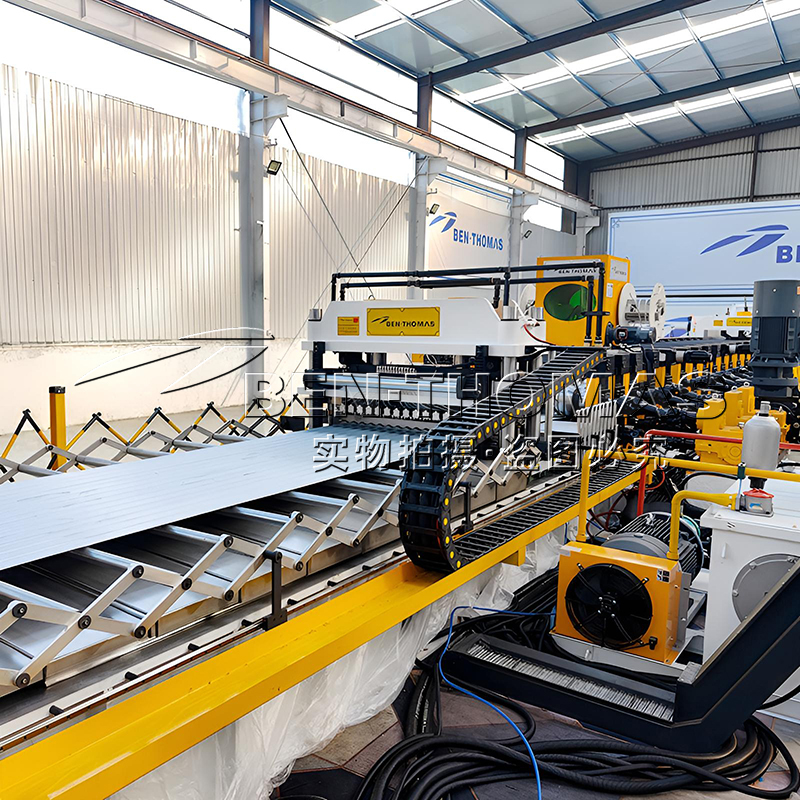

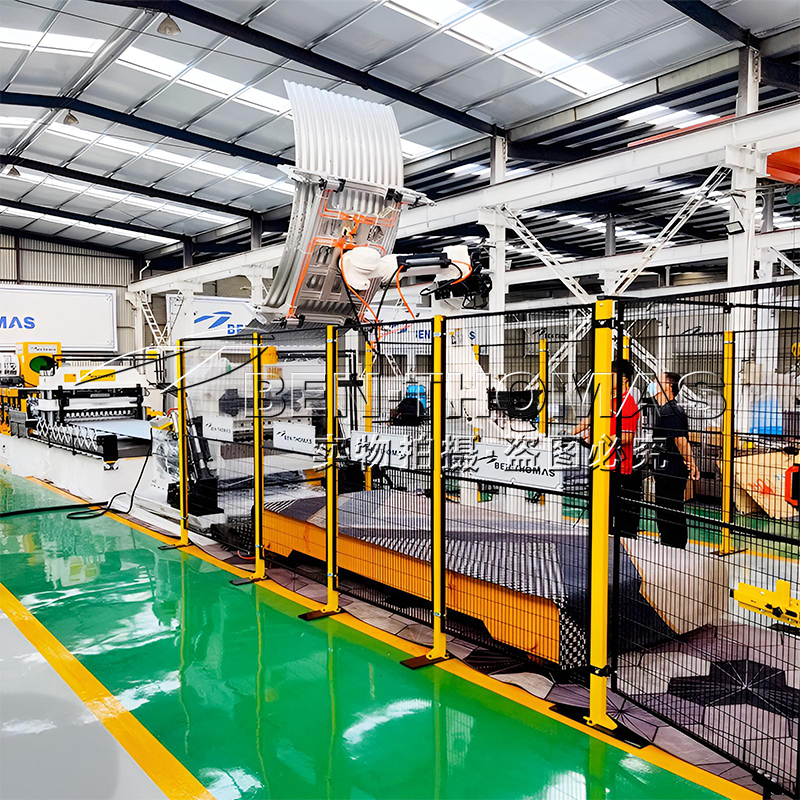

· Complete Auxiliary Package: Included heavy-duty decoiler, precision leveller, run-out conveyor, and automatic stacking system for finished panels.

3. The Factory Acceptance Test: A Rigorous Validation
A 6-member technical delegation from the client visited the BENTHOMAS factory for a comprehensive 4-day FAT.

· Phase 1: Technical Documentation & Static Inspection. The client’s engineers meticulously reviewed all mechanical drawings, electrical schematics, and component certifications. They inspected the line’s build quality, weld integrity, and major branded components (Siemens PLC, Schneider electrics, etc.).
· Phase 2: Dynamic Dry & Wet Run. The core of the FAT involved multiple production runs using client-provided material.
1. Dry Run: All safety functions, emergency stops, and automatic sequences were tested without material.
2. Wet Run with Target Materials: The line processed several coils at incremental speeds (up to 25 meters per minute). The client team performed real-time quality checks on randomly selected panels, verifying:
· Profile geometry and consistency.
· Hole pattern positioning accuracy.
· Panel length and curvature radius against their specific silo design files.
· Surface finish quality (no scratches or deformation).
· Phase 3: Training & Final Sign-off. BEN THOMAS engineers provided hands-on operational and maintenance training. After addressing all queries and a final review meeting, the client’s Project Manager officially signed the FAT Certificate, confirming the line fully met all contractual performance and quality specifications.

4. Results & Client Endorsement

· Proven Performance: The line exceeded the guaranteed output rate by 12%, achieving a stable production speed of 28 m/min for standard panels.
· Unmatched Accuracy: All dimensional checks confirmed tolerance levels superior to industry standards, ensuring leak-proof, fast onsite assembly.
· Seamless Integration: The line’s PLC interface was praised for its user-friendliness, allowing quick changeovers between different panel specifications.

Client Feedback:
“The BEN THOMAS team demonstrated profound expertise and a cooperative spirit throughout the FAT. The line’s performance, particularly the accuracy of the automatic curving unit, has convinced us of its capability to revolutionize our production efficiency. This investment is a strategic move to enhance our market leadership, and we are confident in the long-term partnership with BEN THOMAS.”
— Director of Operations, Client Company

5. Conclusion
This successful FAT for a major Indian manufacturer underscores BEN THOMAS’s capability to deliver world-class, tailor-made industrial solutions. We combine robust engineering with transparent validation processes, ensuring our clients receive a production asset that is verified, reliable, and ready to deliver a rapid return on investment.

—
