Silo Floor Aeration Panel Production Line | Automated Manufacturing for Efficient Grain Storage
We manufacture fully automatic silo floor aeration production lines for high-precision V-bottom panels. Achieve perfect airflow with ≤0.2% defect rate. Enhance grain storage safety. Request a technical brochure.

Automatic Silo Floor Aeration Production Line: Build the Foundation of Perfect Grain Storage

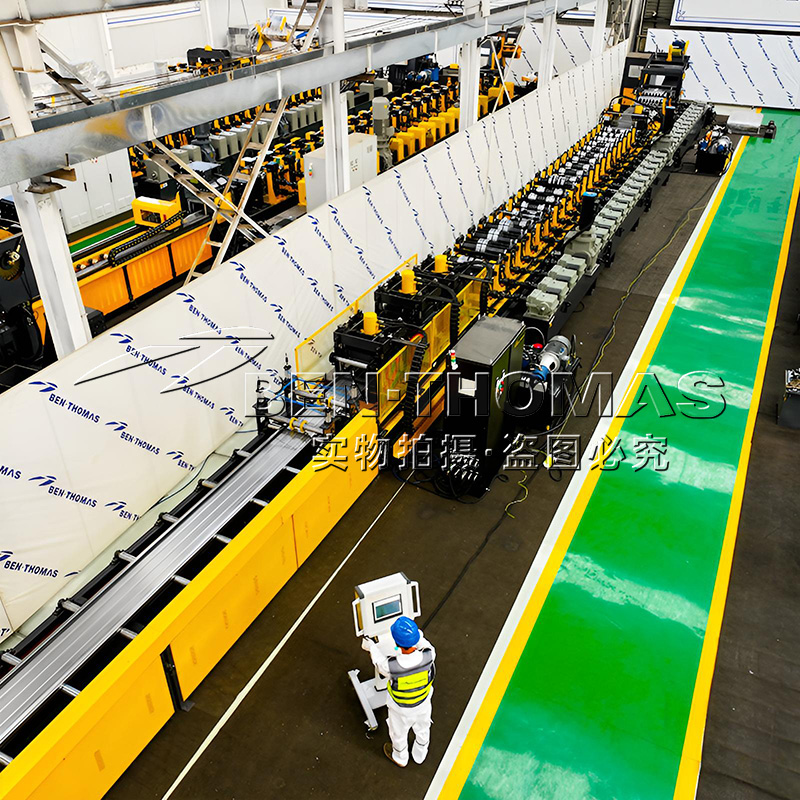

The foundation of any modern, efficient silo is its aeration floor. Our Automatic Silo Floor Aeration Production Line is engineered to manufacture the critical V-bottom aeration panels that ensure uniform air distribution, prevent spoilage, and maximize the longevity of stored grains. This complete, CNC-controlled turnkey system delivers precision, durability, and unparalleled consistency for manufacturers of agricultural and commercial storage solutions.

—

Why This Aeration Floor Line is a Strategic Investment

· Unmatched Airflow Precision: Manufactures panels with exact hole patterns and channel geometry, guaranteeing uniform static pressure and eliminating dead zones for perfect crop conditioning.
· Complete Turnkey Automation: From coil feeding to final stacking. The integrated line includes precision punching, roll forming, cutting, and handling—minimizing labor and maximizing output.
· Engineered for Extreme Load & Corrosion: Produces panels from high-strength galvanized steel (up to G550) capable of withstanding heavy grain loads and humid environments. Equipment features a 1.5x safety factor.
· Data-Backed Efficiency: Achieves a remarkable material defect rate of ≤0.2% and is built for a service life exceeding 25 years, ensuring a superior return on investment.
· Smart & Flexible Production: Central PLC control allows for quick changeovers between different panel profiles, hole patterns, and sizes to meet custom client specifications.

—

Core Technical Features & Output

Our grain bin floor plank production line is designed to fabricate the essential components of high-performance aeration floors:

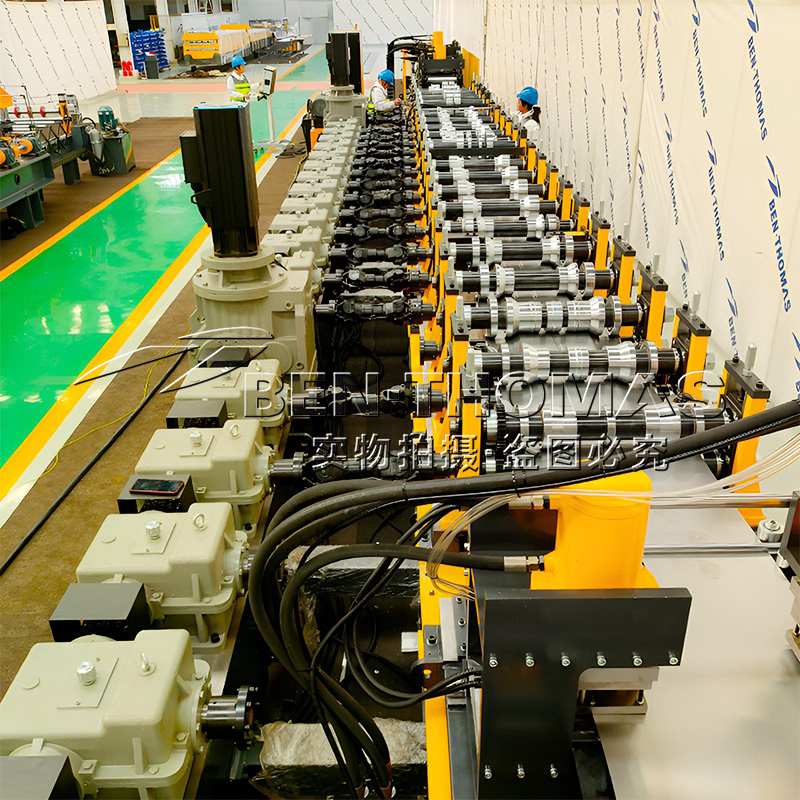

1. High-Precision V-Channel Forming Unit:

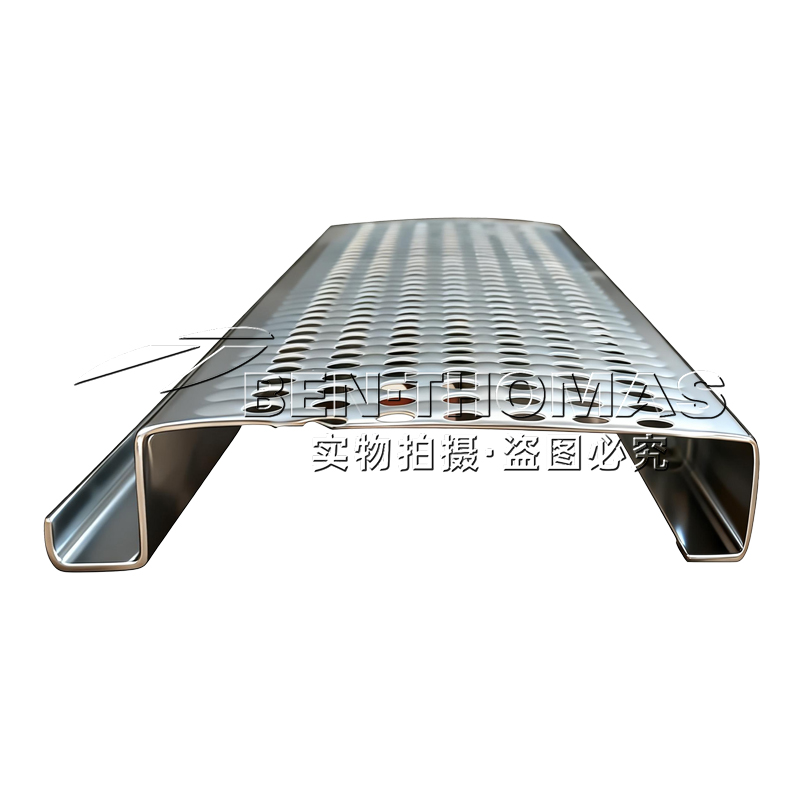

· Creates the strong, self-cleaning V-bottom profile that directs airflow and supports grain load.
· Key Spec: Maintains consistent channel angle and depth; handles material thickness from 1-4mm.
2. Servo-Driven Multi-Tool Punching System:
· Punches optimized, burr-free air inlet holes with exact spacing to ensure calculated airflow distribution across the entire floor area.

3. Intelligent Cut-to-Length & Stacking:
· A flying cut system delivers panels with optional automatic stacker and palletizer organize stiffeners for efficient shipping and installation.
4. Rugged Construction for Continuous Duty:
· Built with heavy-duty frames, premium-grade tooling, and industrial components for 24/7 reliable operation with minimal maintenance.

—

The End Result: Superior Grain Storage Performance

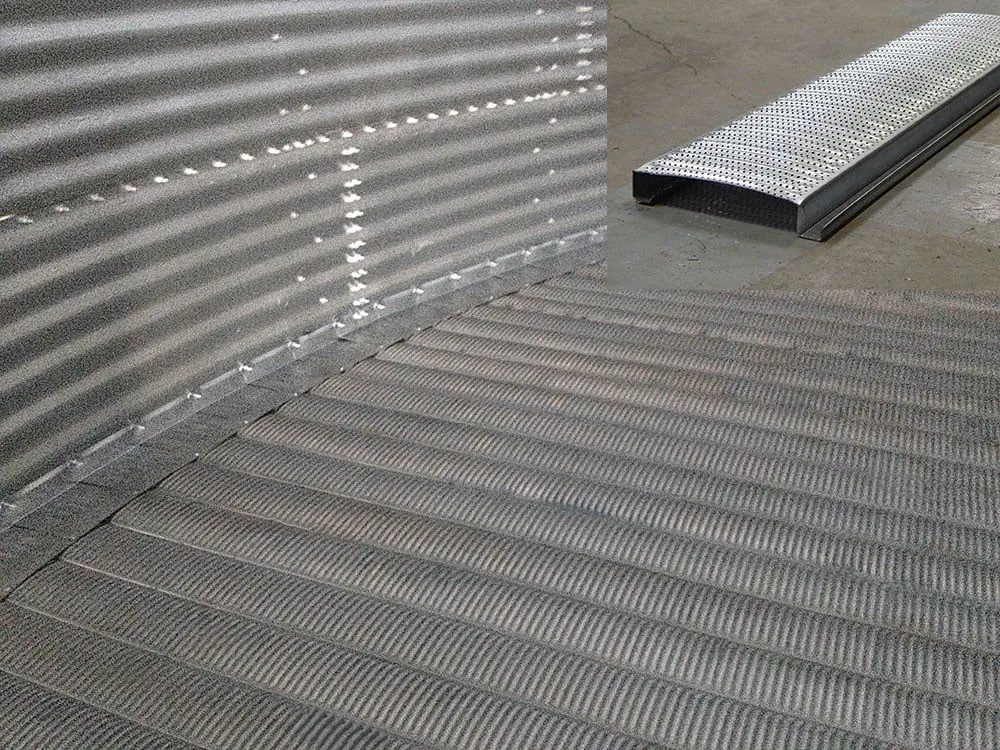

Planks produced on this line enable:

· Effective Grain Preservation: Uniform airflow prevents moisture buildup, mold, and hotspots.
· Reduced Energy Consumption: Efficient floor design minimizes fan horsepower requirements.
· Faster & Safer Installation: Precision-engineered panels fit together seamlessly on-site.
· Long-Term Durability: Robust, corrosion-resistant construction extends the silo’s service life.

Ideal for: Manufacturers of agricultural silos, commercial grain storage facilities, and engineering firms specializing in bulk storage infrastructure.

—

Partner with a Leader in Storage Technology

We deliver more than machinery—we provide a complete grain bin production solution with engineering support, installation supervision, and comprehensive after-sales service to ensure your long-term success.
Ready to produce the industry’s best aeration floors?

Contact: Elise Lee
Tel: +86-155 3281 7581
What’s App: +86-155 3281 7581
WeChat: +86-155 3281 7581
Email: elise@tgrollforming.com

Frequently Asked Questions

Successful FAT of a Silo Wall Panel Line for Major Indian Manufacturer

Project Case Study: Successful FAT of a Silo Sidewall Production Line Major Indian Manufacturer

Client: A leading silo manufacturing company based in Pune, India
Supplier:BEN THOMAS Machinery Co., Ltd.
Project:Factory Acceptance Test (FAT) for a Fully-Automated Corrugated Silo Wall Panel Production Line
FAT Date:March 2024

1. Client Challenge & Project Objective
Our client,a prominent player in India’s agricultural and industrial storage sector, faced challenges in meeting the surging demand for large-diameter silos. Their existing fabrication process for curved wall panels was labor-intensive, slow, and resulted in inconsistent quality, affecting onsite assembly speed and final silo integrity. They commissioned BEN THOMAS to deliver a complete, automated solution that would guarantee high output, exceptional dimensional accuracy, and robust construction for long-term reliability.

2. The BEN THOMAS Solution
BEN THOMAS engineered a heavy-duty, PLC-controlled corrugation shaping line specifically for high-volume production of corrugated silo wall panels.

Key Line Features:

· High-Precision Corrugation Shaping Forming System: Equipped with hardened tooling to form precise, repeatable corrugation profiles from galvanized steel coils (1mm to 4mm thickness).
· Integrated Punching System: For simultaneous, accurate piercing of bolt holes, lugs, and ladder attachment points in a single pass.
· PLC-Driven Variable-Radius Curving Unit: A standout feature allowing automatic, seamless curvature of panels to various diameters (from 4m to 30m+) without manual adjustment or template changes.
· Automatic Length Measurement & Cutting: Ensured each panel was cut to exact length with ±1mm tolerance.
· Complete Auxiliary Package: Included heavy-duty decoiler, precision leveller, run-out conveyor, and automatic stacking system for finished panels.

3. The Factory Acceptance Test: A Rigorous Validation
A 6-member technical delegation from the client visited the BENTHOMAS factory for a comprehensive 4-day FAT.

· Phase 1: Technical Documentation & Static Inspection. The client’s engineers meticulously reviewed all mechanical drawings, electrical schematics, and component certifications. They inspected the line’s build quality, weld integrity, and major branded components (Siemens PLC, Schneider electrics, etc.).
· Phase 2: Dynamic Dry & Wet Run. The core of the FAT involved multiple production runs using client-provided material.
1. Dry Run: All safety functions, emergency stops, and automatic sequences were tested without material.
2. Wet Run with Target Materials: The line processed several coils at incremental speeds (up to 25 meters per minute). The client team performed real-time quality checks on randomly selected panels, verifying:
· Profile geometry and consistency.
· Hole pattern positioning accuracy.
· Panel length and curvature radius against their specific silo design files.
· Surface finish quality (no scratches or deformation).
· Phase 3: Training & Final Sign-off. BEN THOMAS engineers provided hands-on operational and maintenance training. After addressing all queries and a final review meeting, the client’s Project Manager officially signed the FAT Certificate, confirming the line fully met all contractual performance and quality specifications.

4. Results & Client Endorsement

· Proven Performance: The line exceeded the guaranteed output rate by 12%, achieving a stable production speed of 28 m/min for standard panels.
· Unmatched Accuracy: All dimensional checks confirmed tolerance levels superior to industry standards, ensuring leak-proof, fast onsite assembly.
· Seamless Integration: The line’s PLC interface was praised for its user-friendliness, allowing quick changeovers between different panel specifications.

Client Feedback:
“The BEN THOMAS team demonstrated profound expertise and a cooperative spirit throughout the FAT. The line’s performance, particularly the accuracy of the automatic curving unit, has convinced us of its capability to revolutionize our production efficiency. This investment is a strategic move to enhance our market leadership, and we are confident in the long-term partnership with BEN THOMAS.”
— Director of Operations, Client Company

5. Conclusion
This successful FAT for a major Indian manufacturer underscores BEN THOMAS’s capability to deliver world-class, tailor-made industrial solutions. We combine robust engineering with transparent validation processes, ensuring our clients receive a production asset that is verified, reliable, and ready to deliver a rapid return on investment.

—

About BEN THOMAS
BEN THOMAS is a leading designer and manufacturer of high-performance roll forming systems and complete production lines for the global storage and construction industries. With decades of engineering excellence, we provide turnkey solutions that empower manufacturers to achieve superior quality, efficiency, and growth.

Upgrade Your Manufacturing Capability. Contact BEN THOMAS today to discuss your project requirements and schedule a visit to our demonstration facility.
