Professional Silo Side Panel Production Line – High-Speed, Precision Roll Forming Solutions

Meta Title: Silo Side Panel Production Line Manufacturer | High-Speed Roll Forming Line
Meta Description:We design & build automated silo side panel production lines for grain, cement & steel silos. Featuring precision roll forming, high output, and PLC control. Request a quote today.

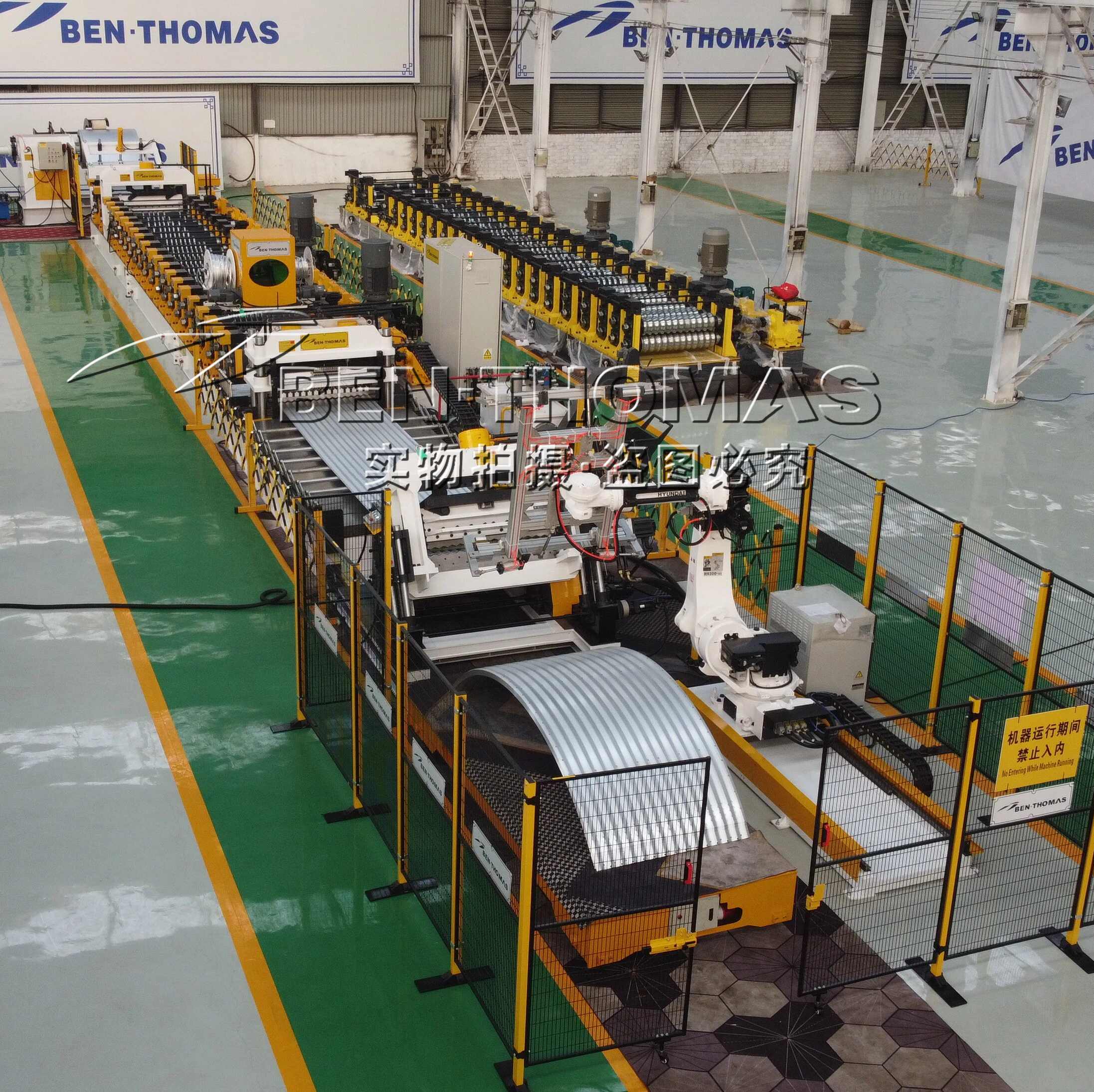

H1: Automated Silo Side Panel Roll Forming Line

Our state-of-the-art silo side panel production line is engineered for manufacturing high-strength, consistently precise curved panels used in bolted silo construction. Ideal for producing grain silo panels, this fully automated grain silo corrugated plate production line maximizes output, minimizes material waste, and ensures superior panel quality for durable storage solutions.

Core Features & Technology

This integrated system combines robustness with intelligent automation:

· High-Speed Precision Silo Wall Roll Forming: The heart of the line, our custom-designed roll forming machine, progressively shapes steel coils into precise profiles with consistent curvature and exceptional dimensional accuracy.
· Fully Automated Operation: From coil feeding and levelling to roll forming, punching, cutting, and stacking. The PLC-controlled production line reduces manual labor and ensures operational safety.
· In-Line Punching Unit: A heavy-duty punching station creates clean, accurately positioned bolt holes in a single pass, eliminating secondary processing.
· Programmable Flying Cut-Off: A servo-driven cutting system ensures burr-free, square cuts to exact lengths without stopping the forming process, guaranteeing high efficiency and perfect panel edges.
· Optimized for Strength & Economy: Produces corrugated or trapezoidal silo panels that provide excellent structural rigidity, allowing for material savings without compromising silo integrity.

—

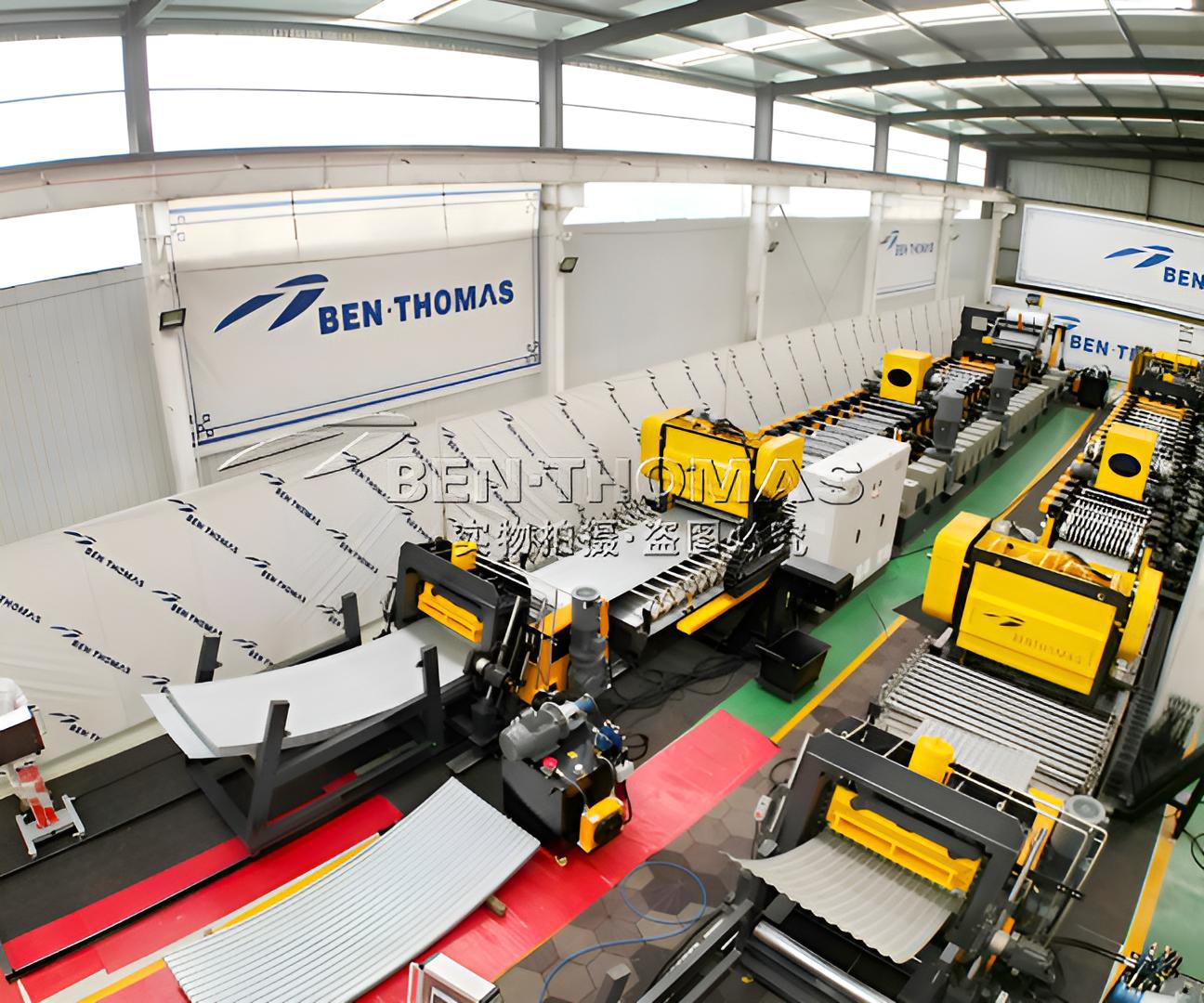

Line Configuration & Process Flow

1. Coil Loading & Feeding: Heavy-duty decoiler with motorized mandrel.

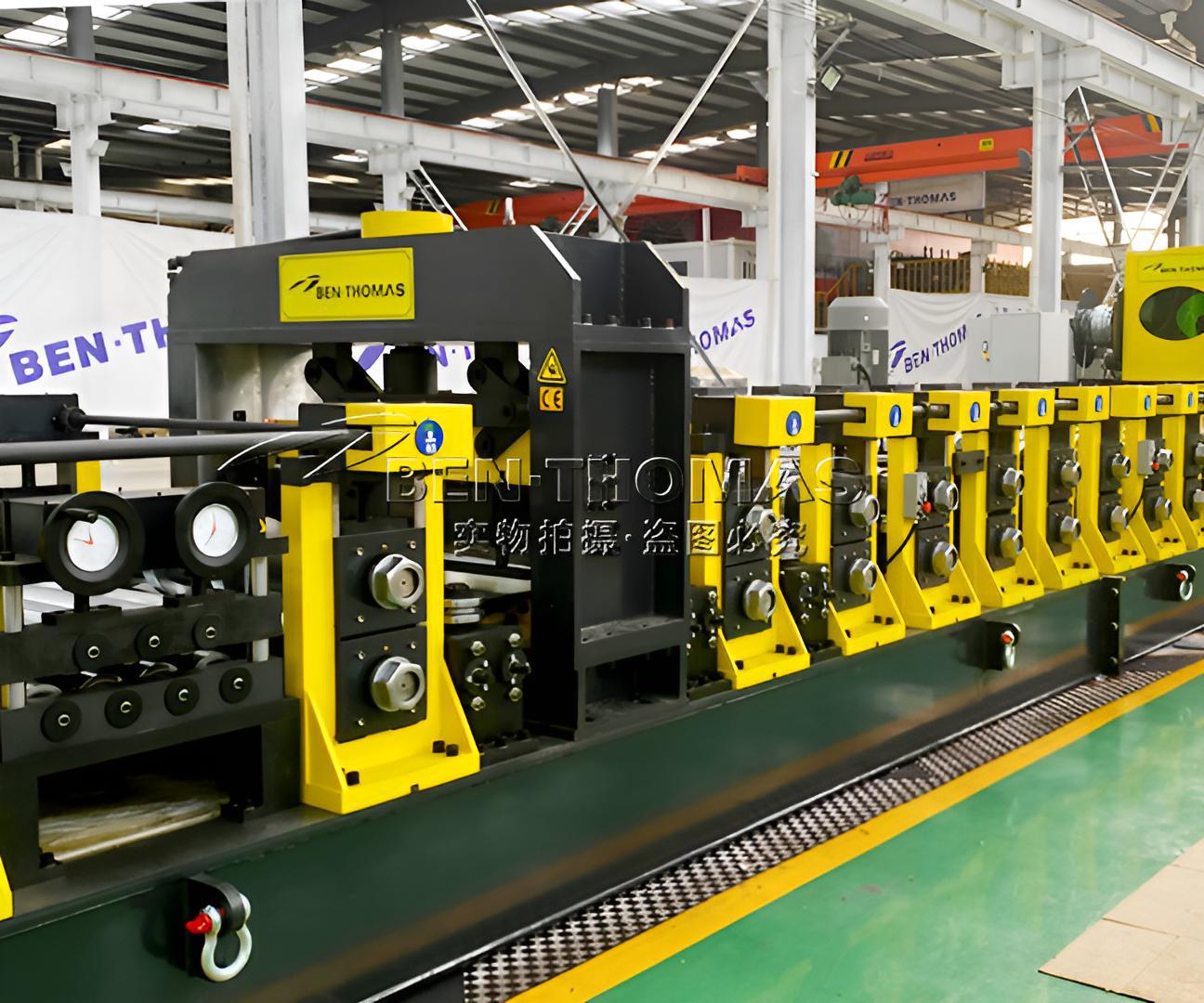

2. Material Levelling: Precision leveller to ensure flat, uniform sheet before forming.
3. Pre-Punching (Optional): In-line hydraulic punching of bolt holes.

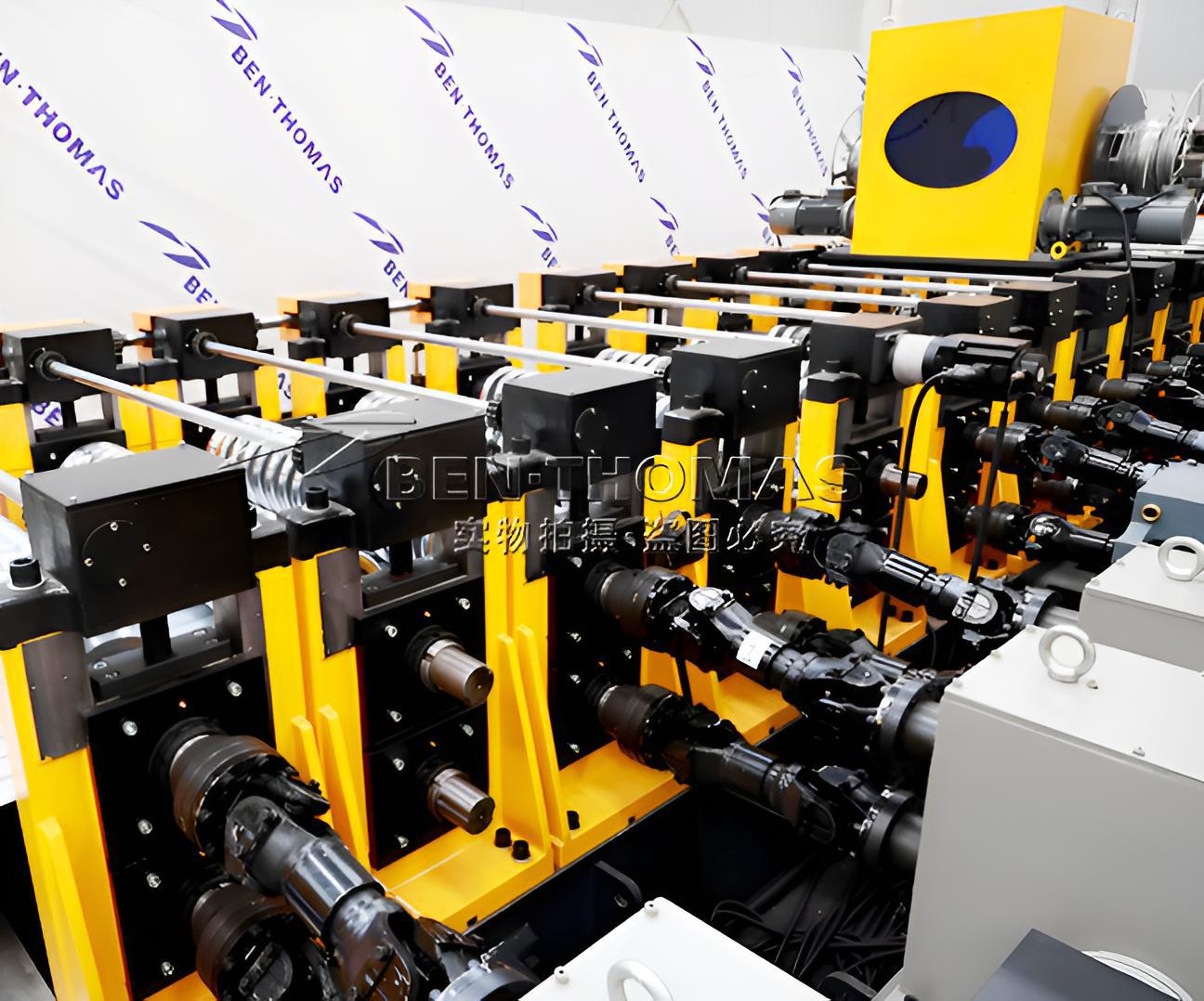

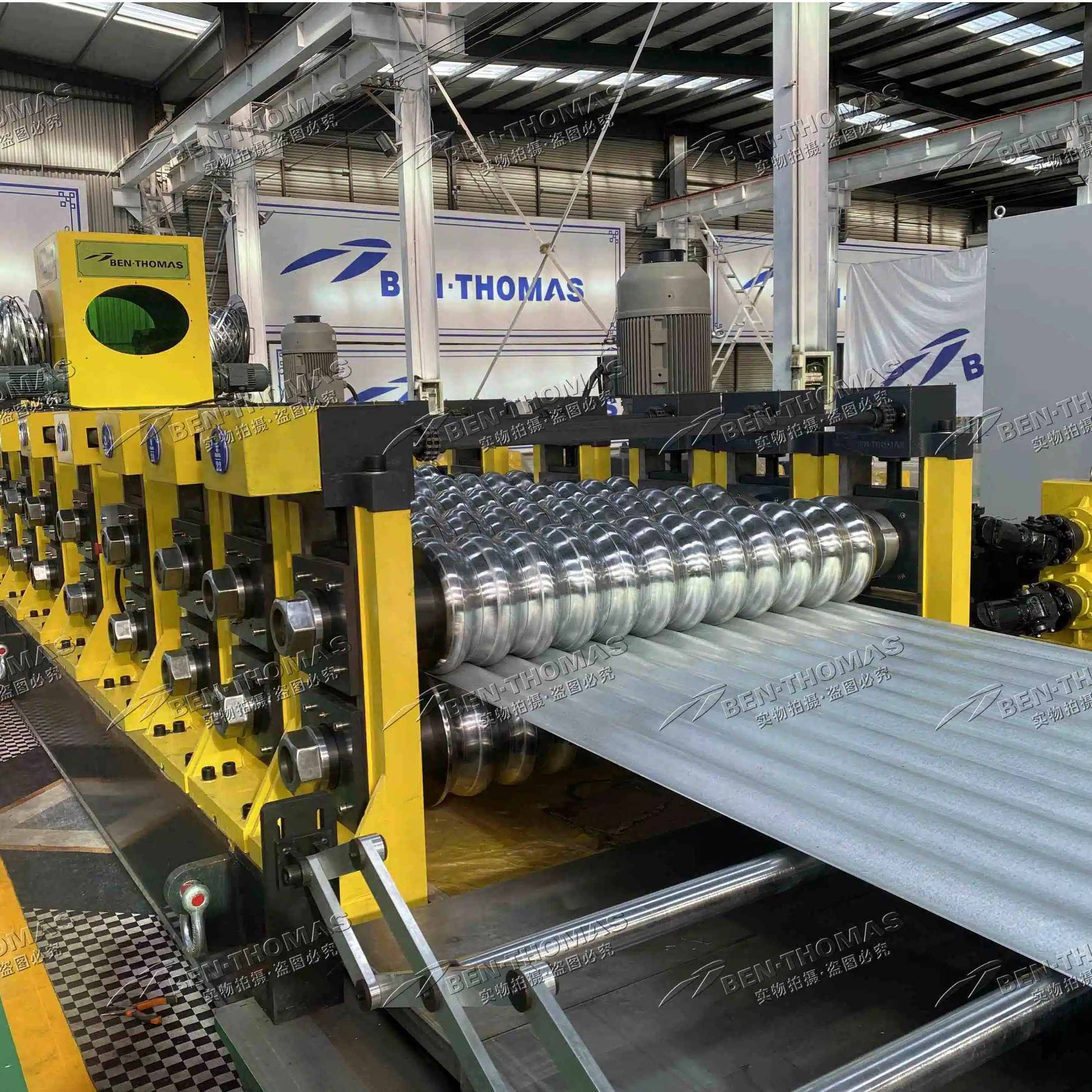

4. Roll Forming: Multi-stage forming stands shape the panel profile.
5. Flying Cut-Off: Servo-controlled hydraulic cut-to-length unit.
6. Automatic Stacking: Output panels are neatly stacked and counted.

—

Quality & Advantages

· Unmatched Consistency: Every silo side sheet produced has identical geometry, ensuring fast, leak-proof assembly on-site.
· High Production Capacity: Designed for continuous 24/7 operation, meeting the demands of large-scale silo projects.
· Reduced Operational Cost: Automation lowers labor costs and minimizes scrap from efficient coil utilization.
· Durable Construction: All critical components use hardened gears and high-strength shafts for long service life and low maintenance.
· Flexible Customization: Lines can be tailored for different panel profiles, lengths, hole patterns, and automation levels.

—

Applications

Our production lines manufacture corrugated panels for:

· Bolted Grain Storage Silos
· Industrial Steel Silos
· Water Tanks and Large-Diameter Silo Containers

H2: Why Choose Our Silo Panel Production Line?

We are a leading silo panel roll forming machine manufacturer with over [X] years of industrial experience. We provide not just machinery, but a complete solution including factory layout design, installation, training, and lifelong technical support. Our goal is to be your reliable partner in building a profitable and efficient silo panel manufacturing business.

—

Ready to upgrade your manufacturing capabilities?
Contact our engineering team today for a detailed quotation and factory layout proposal tailored to your needs.

Silo Side Panel Production Line, Silo Panel Roll Forming Line, Grain Silo Panel Machine, Roll Forming Machine, PLC-Controlled Production Line, Automated Silo Panel Manufacturing Line, Production Line for Steel Silo Side Sheet, Automated Line for Bolted Silo Panel.

Frequently Asked Questions

Successful FAT of a Silo Wall Panel Line for Major Indian Manufacturer

Project Case Study: Successful FAT of a Silo Sidewall Production Line Major Indian Manufacturer

Client: A leading silo manufacturing company based in Pune, India
Supplier:BEN THOMAS Machinery Co., Ltd.
Project:Factory Acceptance Test (FAT) for a Fully-Automated Corrugated Silo Wall Panel Production Line
FAT Date:March 2024

1. Client Challenge & Project Objective
Our client,a prominent player in India’s agricultural and industrial storage sector, faced challenges in meeting the surging demand for large-diameter silos. Their existing fabrication process for curved wall panels was labor-intensive, slow, and resulted in inconsistent quality, affecting onsite assembly speed and final silo integrity. They commissioned BEN THOMAS to deliver a complete, automated solution that would guarantee high output, exceptional dimensional accuracy, and robust construction for long-term reliability.

2. The BEN THOMAS Solution
BEN THOMAS engineered a heavy-duty, PLC-controlled corrugation shaping line specifically for high-volume production of corrugated silo wall panels.

Key Line Features:

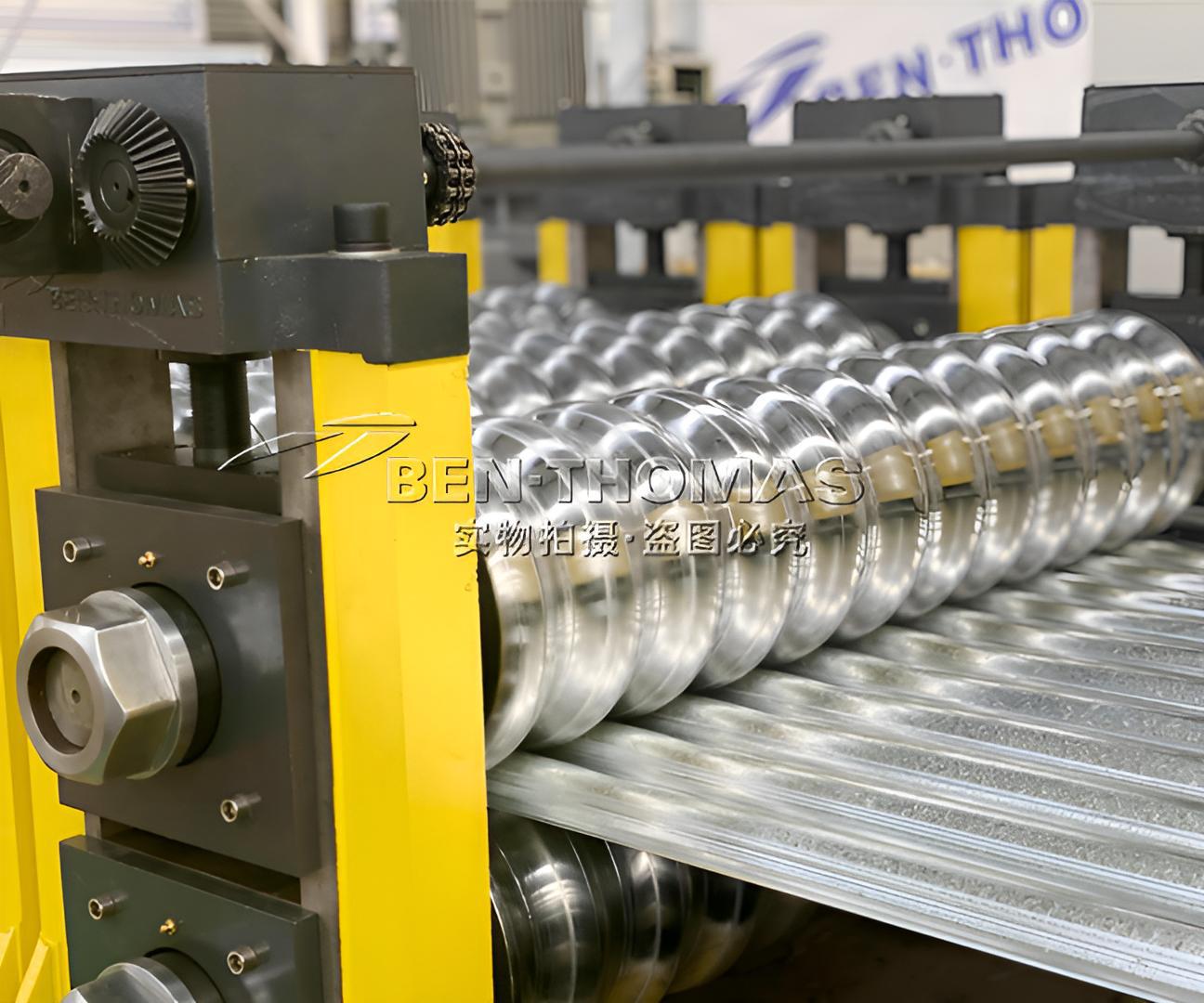

· High-Precision Corrugation Shaping Forming System: Equipped with hardened tooling to form precise, repeatable corrugation profiles from galvanized steel coils (1mm to 4mm thickness).
· Integrated Punching System: For simultaneous, accurate piercing of bolt holes, lugs, and ladder attachment points in a single pass.
· PLC-Driven Variable-Radius Curving Unit: A standout feature allowing automatic, seamless curvature of panels to various diameters (from 4m to 30m+) without manual adjustment or template changes.
· Automatic Length Measurement & Cutting: Ensured each panel was cut to exact length with ±1mm tolerance.
· Complete Auxiliary Package: Included heavy-duty decoiler, precision leveller, run-out conveyor, and automatic stacking system for finished panels.

3. The Factory Acceptance Test: A Rigorous Validation
A 6-member technical delegation from the client visited the BENTHOMAS factory for a comprehensive 4-day FAT.

· Phase 1: Technical Documentation & Static Inspection. The client’s engineers meticulously reviewed all mechanical drawings, electrical schematics, and component certifications. They inspected the line’s build quality, weld integrity, and major branded components (Siemens PLC, Schneider electrics, etc.).
· Phase 2: Dynamic Dry & Wet Run. The core of the FAT involved multiple production runs using client-provided material.
1. Dry Run: All safety functions, emergency stops, and automatic sequences were tested without material.
2. Wet Run with Target Materials: The line processed several coils at incremental speeds (up to 25 meters per minute). The client team performed real-time quality checks on randomly selected panels, verifying:
· Profile geometry and consistency.
· Hole pattern positioning accuracy.
· Panel length and curvature radius against their specific silo design files.
· Surface finish quality (no scratches or deformation).
· Phase 3: Training & Final Sign-off. BEN THOMAS engineers provided hands-on operational and maintenance training. After addressing all queries and a final review meeting, the client’s Project Manager officially signed the FAT Certificate, confirming the line fully met all contractual performance and quality specifications.

4. Results & Client Endorsement

· Proven Performance: The line exceeded the guaranteed output rate by 12%, achieving a stable production speed of 28 m/min for standard panels.
· Unmatched Accuracy: All dimensional checks confirmed tolerance levels superior to industry standards, ensuring leak-proof, fast onsite assembly.
· Seamless Integration: The line’s PLC interface was praised for its user-friendliness, allowing quick changeovers between different panel specifications.

Client Feedback:
“The BEN THOMAS team demonstrated profound expertise and a cooperative spirit throughout the FAT. The line’s performance, particularly the accuracy of the automatic curving unit, has convinced us of its capability to revolutionize our production efficiency. This investment is a strategic move to enhance our market leadership, and we are confident in the long-term partnership with BEN THOMAS.”
— Director of Operations, Client Company

5. Conclusion
This successful FAT for a major Indian manufacturer underscores BEN THOMAS’s capability to deliver world-class, tailor-made industrial solutions. We combine robust engineering with transparent validation processes, ensuring our clients receive a production asset that is verified, reliable, and ready to deliver a rapid return on investment.

—

About BEN THOMAS
BEN THOMAS is a leading designer and manufacturer of high-performance roll forming systems and complete production lines for the global storage and construction industries. With decades of engineering excellence, we provide turnkey solutions that empower manufacturers to achieve superior quality, efficiency, and growth.

Upgrade Your Manufacturing Capability. Contact BEN THOMAS today to discuss your project requirements and schedule a visit to our demonstration facility.
